Contactor Filters (FC)

Contactor Filters (FC)

Contactor filters (FC) are designed for air purification from ammonia, sulfur dioxide gas, hydrogen chloride, anhydrous hydrogen fluoride and other gases and vapors.

FC filters are characterized by:

• high purification efficiency (90-98%);
• total automation of purification process;
• minimal power consumption (20 times less than when purifying by scrubbers);
• reliability of operation and maintenance ease;
• purification efficiency practically doesn’t depend on fluctuations of pollution agent concentrations and air-flow speed;
• possibility of heated air purification (up to 600?);
• low sensitivity to air dustiness;
• low aerodynamic resistance (50 – 100 Pa);
• possibility of air purification with low and high moisture content 10-100 rel%).

Air purification is carried out by means of diffusive movement of contaminating gas and vapor molecules to the surface of contactor unit plates and their further chemical binding by the functional groups of MION® ion-exchange filtermaterials.

FC filter specification.

	FC-5	FC -10	FC -20	FC -30
Productivity, m3/hour	5 000	10 000	20 000	30 000
Contact area, m2	88	176	350	460
Aerodynamic resistance, no more than, Pa:	100	100	100	100
Period between regenerations, min	20	20	20	20
Regeneration duration, min	1	1	1	1
Filtration linear speed, m/sec	3	3	3	3

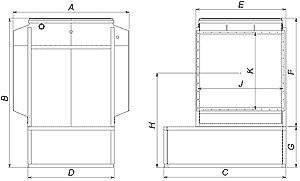

?, mm	1266	1266	1270	1510
?, mm	1858	1880	1942	2130
?, mm	1000	1500	2500	3080
D, mm	1025	1020	1025	1510
E, mm	730	1230	2250	3080
F, mm	1338	1370	1417	1460
G, mm	648	640	653	667
H, mm	1266	1233	1300	1382
JxK, mm	550?940	1050x940	2050 ?940	3000?885
Dry filter mass as a unit, no more than, kg	470	600	850	1300
Tank volume, m3	0.2	0.5	0.84	2.3
